Arbus 200 USA
Jacto's Arbus 200 airblast sprayer delivers big performance in a small package. Engineered with many of the same features as our biggest sprayers that ensure long life, excellent durability, and maximum crop protection for smaller, specialty growers and for use with low horsepower tractors. Designed for compact tractors as small as 18 HP, the A200 has a heavy duty skid style upswept frame that protects the pump, suction filter and fan housing when crossing low areas and irrigation ditches. Jacto designed the Arbus 200 to economically meet the demands of a wide variety of crop applications such as orchard, vineyard, berry, nursery, Christmas tree and other fruit applications. It has become the sprayer of choice, for grape, blueberry, raspberry, blackberry and spindle apple growers.
•50 gallon poly tank •22 inch diameter fan •Jacto JP42 piston pump – 11 gpm, @ up to 300 psi •4-way manual control valve •Chemical container and 4 gallon fresh water hand rinse systems •Fresh water tank is removable and can double as a manual main tank rinse aid •Plumbed for optional hand spray guns, fitting and handgun sold separately •Fan disconnect, important for agitation when traveling to the field or handgun spraying •Bypass agitation •16 double flip-over ceramic nozzles with washable nozzle screens •Suction filter with shutoff and washable mesh element •Heavy duty up swept skid frame protects the pump and fan •Empty weight – 374 lbs •Recommended tractor – 18 HP and above •Optional Mini-Tower available #1197701 •Optional Electric valve kit available - #ELKIT200 •Optional handgun fitting, #086447 + #706792 o-ring
Optional A200 MINITOWER
The optional minitower directs the air flow evenly from top to bottom and more efficiently delivers the spray material to the target. This changes the spray pattern from a circle to a vertical pattern, more evenly matching the crop to the plant canopy. It also brings the nozzles closer to the plants, reducing the distance the droplets have to travel to reach the target and minimizes drift factors. These features provide better spray deposition and coverage. Our minitower has been a very popular option for growers in vertically grown crops such as grapes, blackberries, raspberries, spindle orchards and many other tall crops up to approximately 12 feet. The optional minitower can be easily added to any new or existing A200 in about one hour.

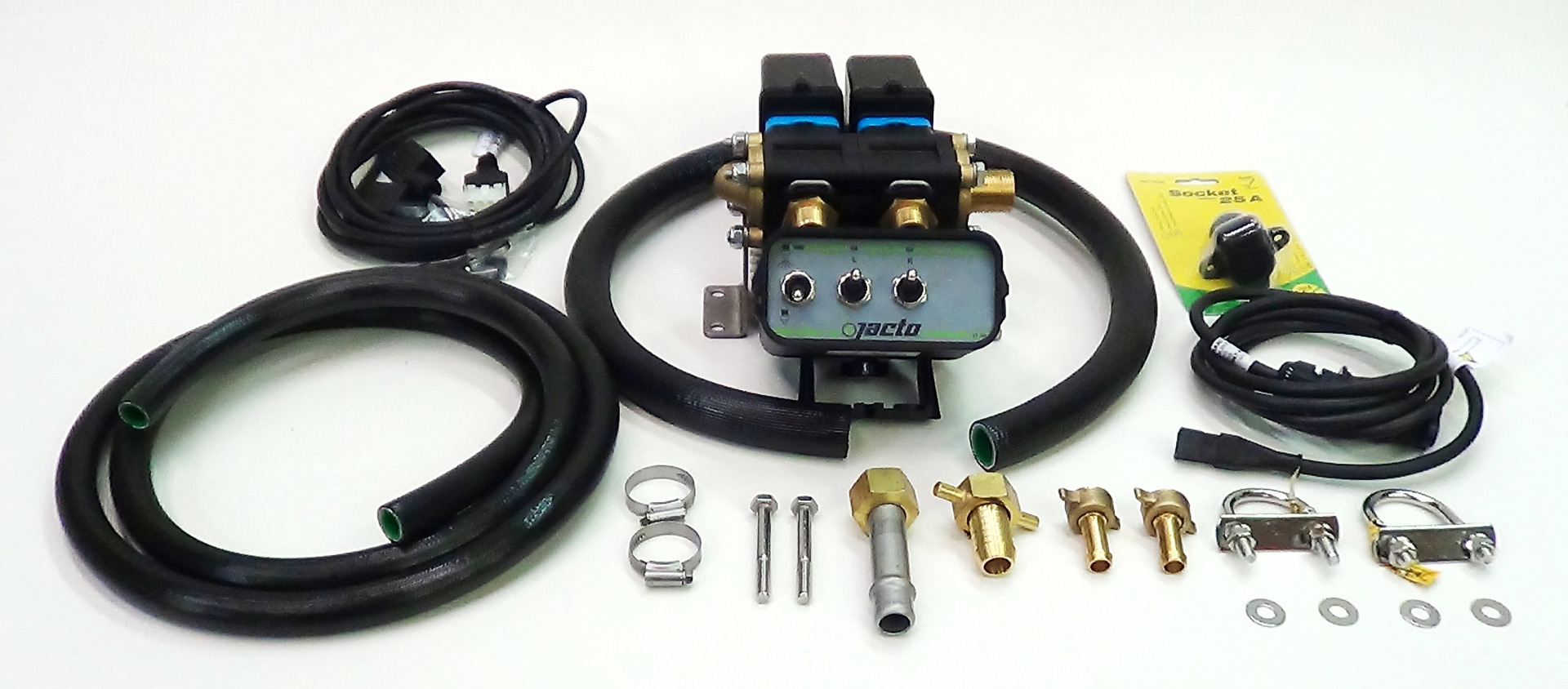

Optional Electric on/off Control Valves
This kit consists of two high pressure valves, one for each nozzle branch, an in-cab controller and all the hardware for installation. For operators with cab tractors this optional kit allows for easy operation of the sprayer without having to open the cab window.
Length x width x height49 x 39 x 45 inches
Net Weight Without Minitower374 Lbs
AgitationBypass with venturi
Fresh water tank
ModelJacto JP-42 piston pump
Pumping capacity11 gpm
Maximum working pressure300 psi
Pump power consumption1.9HP
Air speed51 mph
Air volume12,065 cfm
Spraying1 to 4 mph
Maximum 540-rpm power consumption4.6 Hp
Recommended tractor size18 hp and above
